12.1.2 Conceptual Mass Models

2 minutesread

Mass Models

    1. Energy Settings Mode – The appropriate Energy Settings mode for Mass Models is ‘Use Conceptual Masses’. When FenestraPro is launched on a Mass Model, it will change the mode to this setting and FenestraPro will initiate the Energy Model in Revit if it has not been done already.

The Mode setting should get set automatically but may on occasion need checking
  1. For Conceptual Masses, assign Mass Floors in Revit by clicking on the mass and using this tool on the Revit Menu. Mass Floors should be applied to all levels to be analyzed excluding the Roof level.
Assign Mass Floors to selected Levels

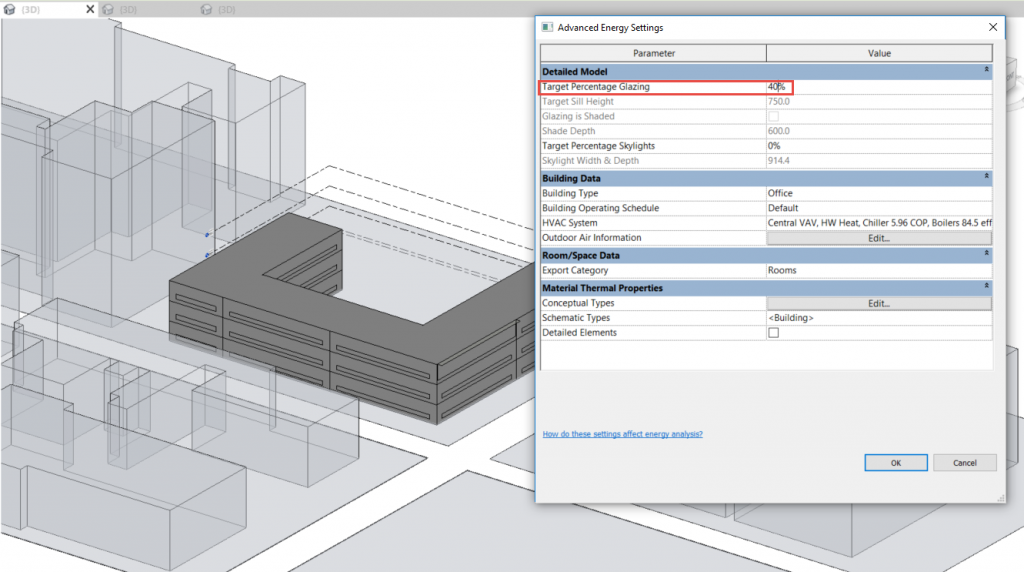

  1. Check that Target Glazing Percentage is set if needed. You may also enter this later inside FenestraPro Target.
Glazing Percentage may be set here or set and adjusted in FenestraPro

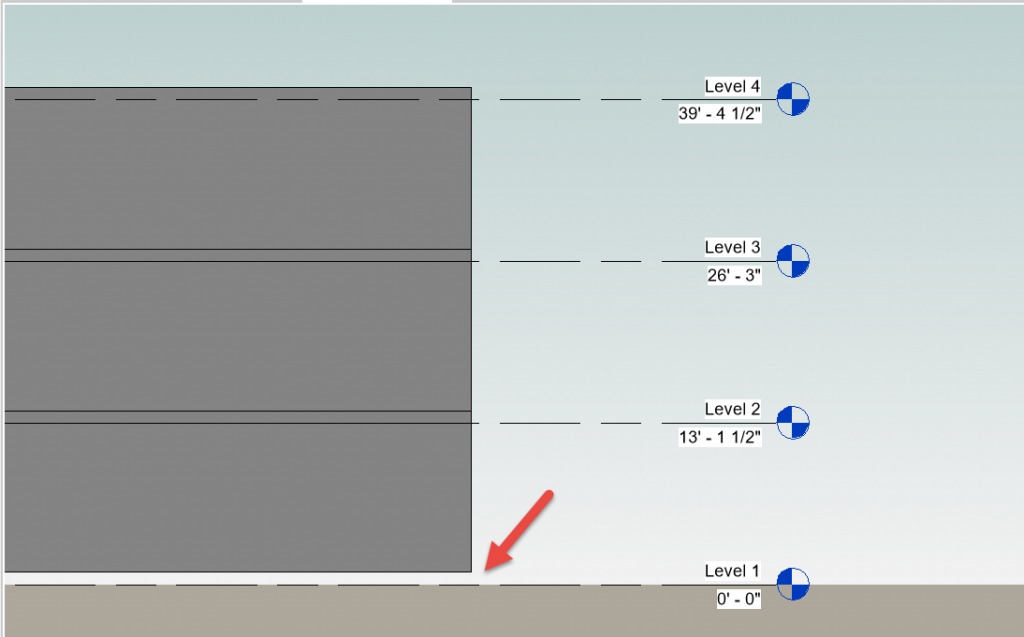

  1. Check that the Mass is physically touching the lowest Level (sometimes a gap may have been left in error when modelling so that the base of the mass does not touch the lowest level selected). You may need to zoom in to check this. Revit’s Energy Model will display a warning if this is the case.

The Mass model should touch the Level that is to be the Ground Plane
  1. Create the Mass as one volume in the Mass Editor rather than separate pieces. It is recommended to model floor by floor by creating a footprint and extruding this up to the next level. This may then be copied and aligned for each successive level where this is appropriate. This will allow FenestraPro to have more control over independent Surfaces.

Masses created Level by Level work best and allow more control

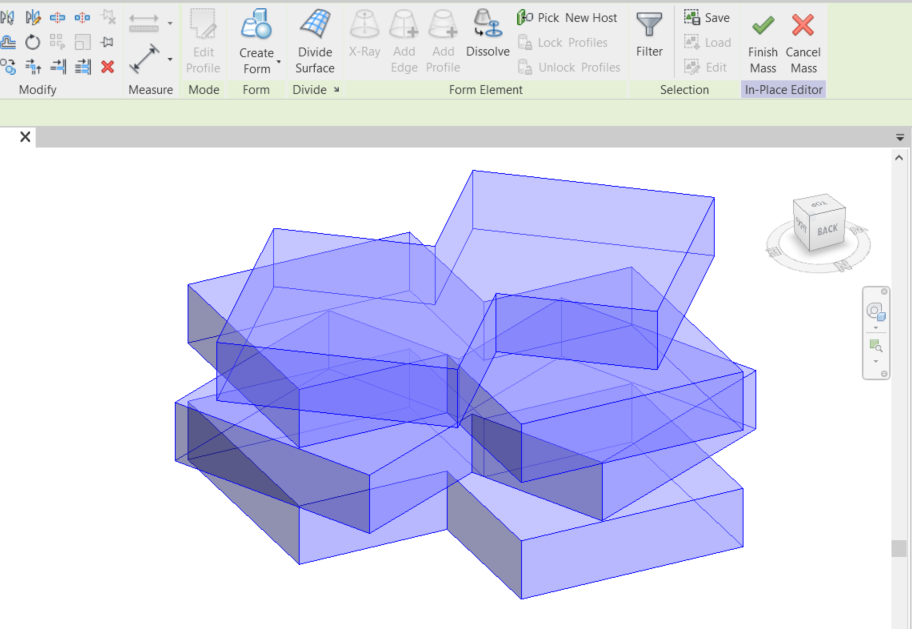

  1. Remove any core extrusion that is modeled and that connects masses (elevator shaft/stairwell mass inside another mass). This will interfere with the analysis. Overlapping masses and core extrusions that link masses should be avoided when creating mass models.

Avoid Core extrusions and overlapping masses
