14.1 Detailed Model Workflow

3 minutesread

1. Open a detailed model in Revit.

2. Set thermal properties for building elements by using the Edit Type tool in Revit.  Glazing should have Analytical Properties assigned for each glazing type to be analyzed. Setting thermal properties for one glazing type will assign this to all instances of that type in the Revit project.

3. Open FenestraPro from the Revit Add-in Menu.

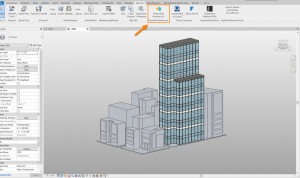

FenestraPro on the Add-in Menu

4. You may check the Energy Settings in Revit are correct for your project before opening FenestraPro. An Energy Model will be created automatically in any event once FenestraPro is loaded.
5. Check settings in the Building Manager such as Location, Terrain, Building Use and Occupancy. Calculate Solar Loads in the Building Manager.

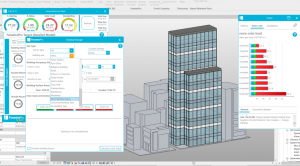

Check Settings in Building Manager and Calculate Solar Loads

6. In Target, create an Energy Standard/Building Code for your project based on Site Location eg. If the project is to be located in the USA, create a Code based on an appropriate Building Code such as Ashrae 90.1. If the project is to be located in the Middle East, Asia or Europe, create an appropriate Code to suit the appropriate country’s regulations.

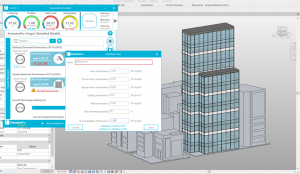

Setting a suitable Code for the project

7. Properties for building elements (walls, floors roofs etc) may be modified in Revit’s Edit Type by going to the Analytical Construction area in Edit Type or by going to the Element assembly and by modifying the layers and materials. Generic Walls and Floors for example should have material layers set so that thermal properties are assigned in Revit.

Anytime that these properties are changed, they will be read by FenestraPro and the results will update. Please click on the Refresh button on the Dashboard to update the results.

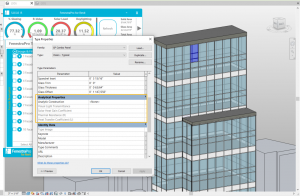

Check element properties are set in Revit

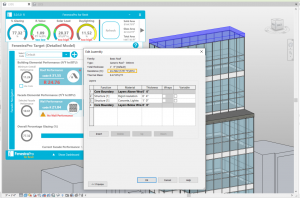

Solid elements need to be built up with layers of materials

8. Windows may be added to solid walls (this uses the FenestraPro window family) or Curtain Walls may be generated on the Revit model. (The Curtain Wall generation feature should be used with Spatial Elements). It will be necessary to recalculate the Solar Loads after Window and Curtain Wall generation (see Section 7.5 and Section 7.6).
9. Custom Groups may be created in the Façade Manager to make a collection of specific Surfaces that are critical for analysis (see Section 7.7.3)
10. A Report may be created if results need to be saved for review. If modifications are made to the model and glazing is adjusted, a further Report may be created for comparison.
11. Windows which have no thermal properties or that need to be assigned properties for which Revit does not provide precise values, may be allocated properties using the Properties button where values may be input manually to suit actual products. These values will be used by FenestraPro in this project but are not written to the Revit model (see Section 7.8)
12. Fritting may be applied to the glazing elements selected in the list. By inputting values for Transparency and Coverage, simulated results will be calculated. The less transparency and more coverage that the fritting has, the more effective it will be.
13. Windows may also be resized using the Resize button (see Section 7.9)
14. Shading devices may be added to the detailed model such as the FenestraPro shading family, mass objects as canopies/vertical fins or surrounding buildings which may have a shading effect. The Solar Loads will need to be recalculated in the Building Manager (with the Shading Factors turned on) after these are added so that the effects can be included in the results.
