2.0.2 User Interface

3 minutesread

This will explain the User Interface and features.

Click here to go to Video Tutorials



Splash Screen – opens when you launch FenestraPro for Revit. Select an option for your model.

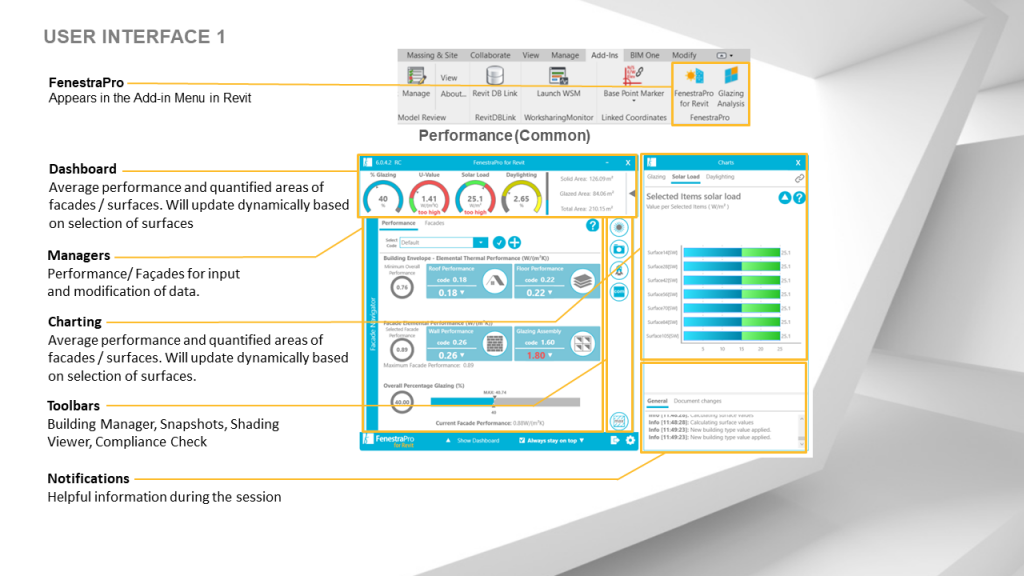

Main Window – made up of the Dashboard, Managers and Toolbar

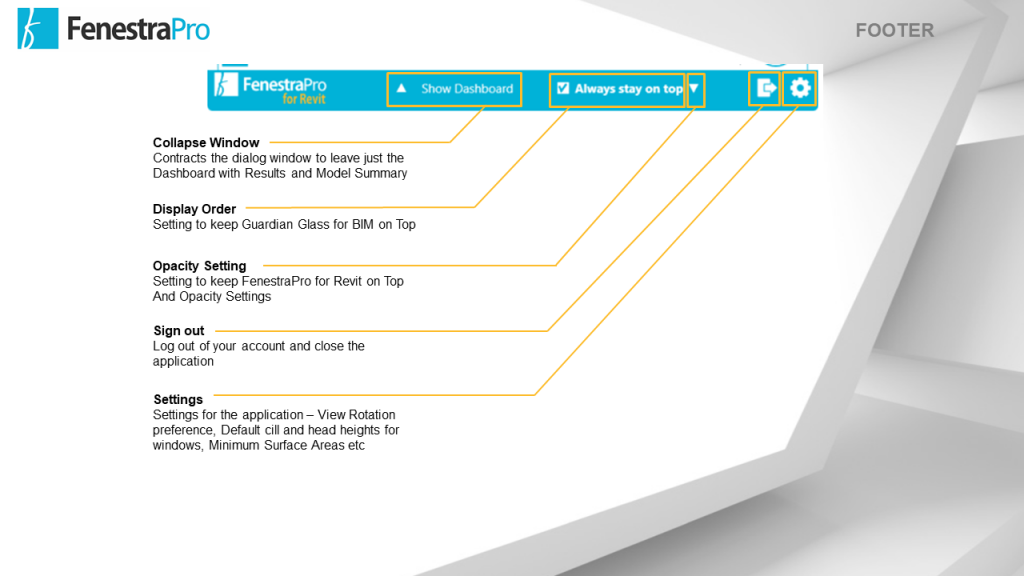

Footer – provides controls for collapsing the window, opacity, Settings and for Signing into your Account or the Cloud Service (subscription required).

Building Manager – This provides settings for the project. Calculate the Solar Loads here and include Shading Effects is required.

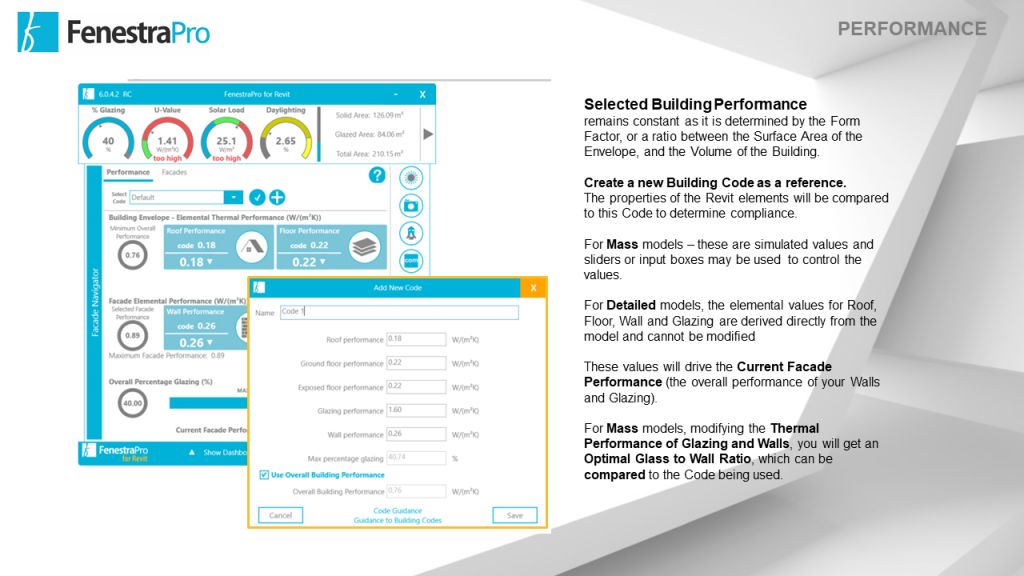

Target – Create a Building Code and review element properties in the model.

Facade Manager for Mass Models – Settings that apply to the entire project or selected Facades/Surfaces. The Interface will adjust depending on what is selected in the Facade Navigator.

User Controls for Selected Facades/Surfaces (Mass Models only)



Facade Manager for Detailed Models – Details of glazing elements are displayed.

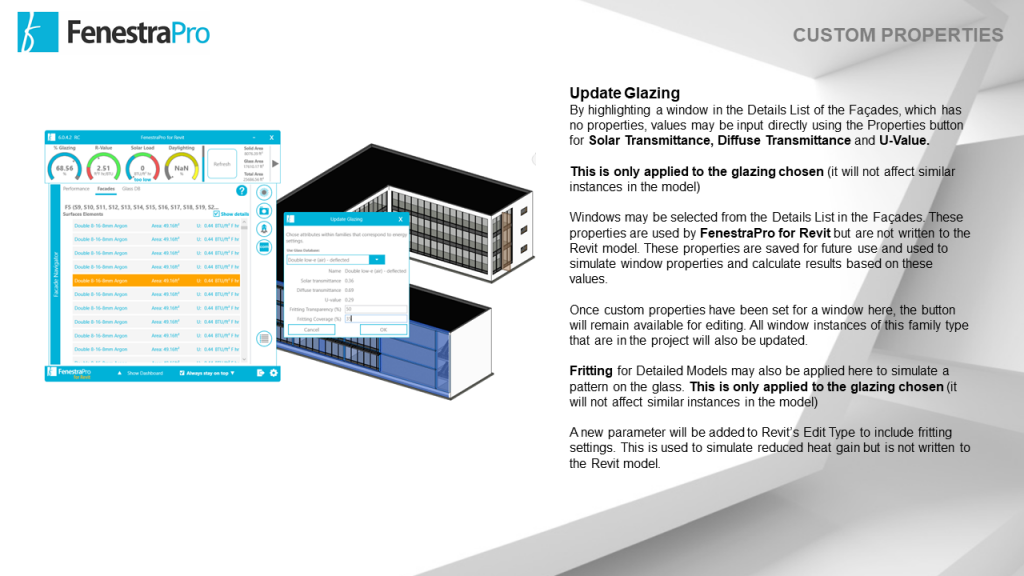

Custom Properties – provides custom property settings for individual glazed elements (other instances will not be modified)

Custom Groups – provides creation of a Group with favorite/most relevant Surfaces

Linc – modify Glazing Properties by filtering and selecting a Glass Type

Surface Fix – resolve thermal properties for glazing by having Linc suggest Glass Types

Glazing Tool – provides control over nested panel materials and properties

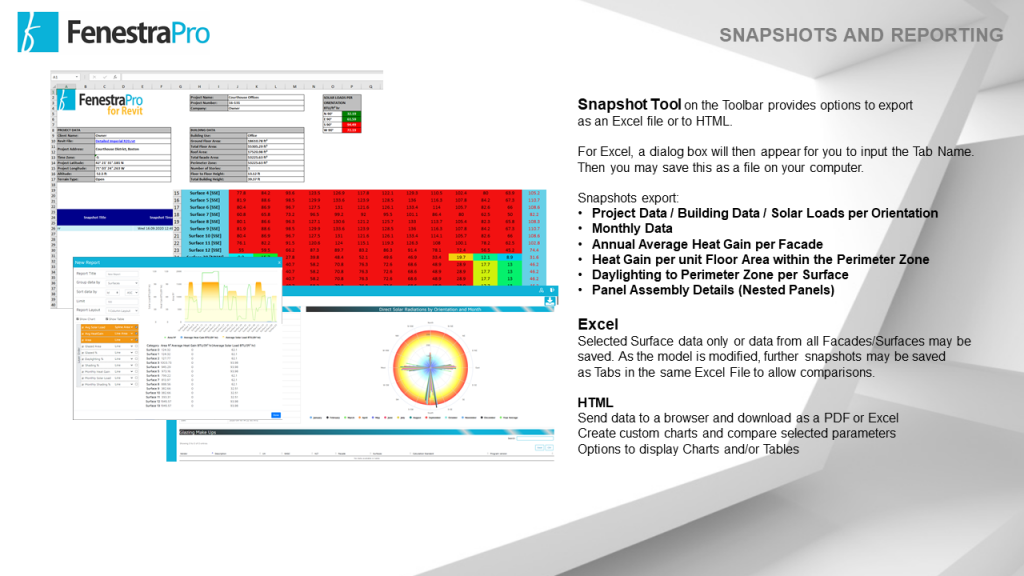

Snapshots – export the data to a Excel or HTML report
