6.1.5. Warning Asterisk

2 minutesread

If a red Asterisk is displayed in the element panel, this indicates that a family in the Revit model has properties which are outside the range used by FenestraPro. This may be only one family in the model or several families. The value shown in the element panel may be within the ranges but FenestraPro has identified an element family which may have no thermal properties set or has a high thermal property.

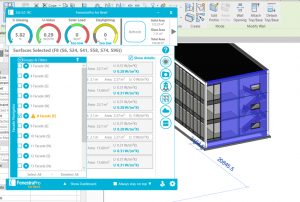

Asterisk indicates that a family has None or High thermal properties

The Façade Navigator will also display an indicator where no thermal properties have been set for an element on a specific Surface.

Indicator if thermal properties are missing
