7.3.6.3 Apply new Glass Type

2 minutesread

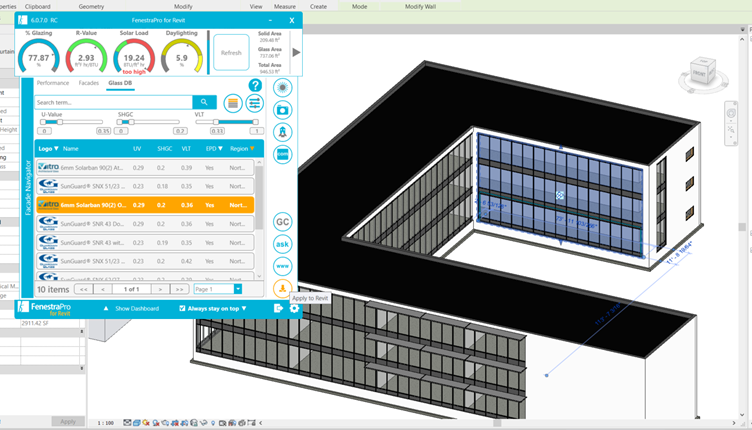

Once a Surface has been selected or a glazed element on the model selected, select a Glass Type from the list and use the Apply button.

When the Apply button is used, 2 options will appear in a new dialog window. If the element family is being used elsewhere in the model, you may only wish to apply the new Glass Type to this Surface only and not to other areas of the model.

If you wish to set this Glass Type for all instances of this element in the model, you may use the ‘Apply to all Building’ option.

If you wish only to set this Glass Type for this Surface only, use the second option ‘Apply to Selected Surface only’.

Once you select an option, click on Apply to proceed. Use the Refresh button to update the results on the Dashboard.
