9.1.2 Conceptual Mass Model

1 minuteread

You may set default glazing configuration values for various settings outlined such as glazing frame percentage, window head and sill heights, shading canopy offset, fritting settings etc.  Inputs here will become the default setting for all future Mass Model projects used with FenestraPro for Revit.  Relaunch the application from the Revit Add-in menu to start using the changes.

Note: Adjusting the values for head and sill heights will not appear visually on the model but the adjustments will be factored into the results.  Smaller changes in values may not appear to affect the results (results for solar heat gain and daylighting may only change in the decimal places).

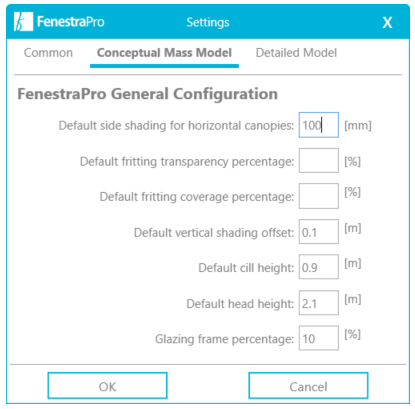

Default options for Mass models
