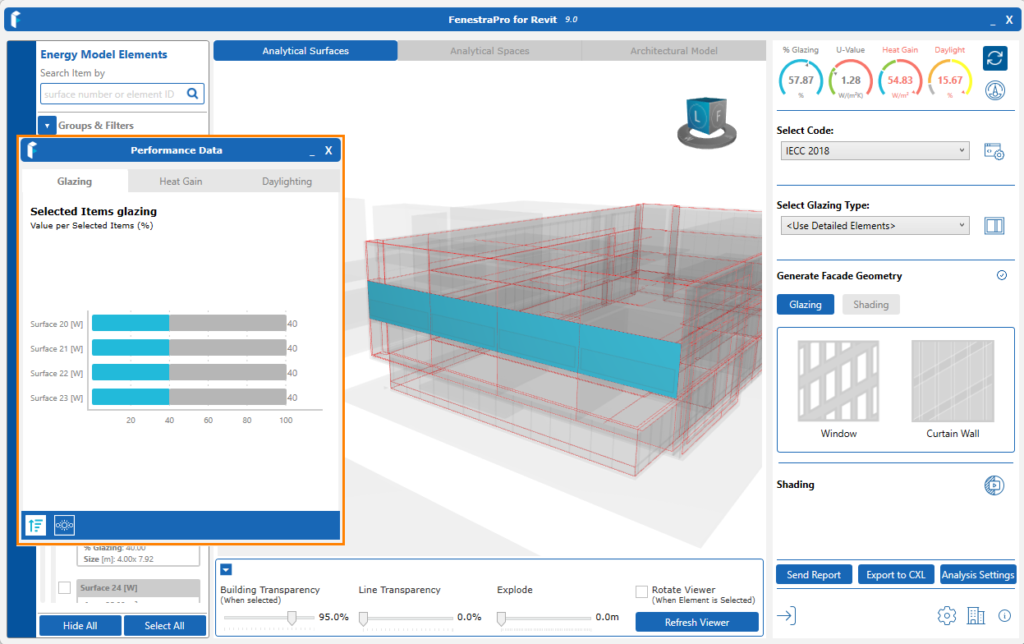

This Chart will report the percentage glazing on the selected Surface/Facade. Spandrel/Shadowbox curtain panels will be deducted from the glazed area. Where building elements have complex material configurations such as nested panels, exact glazed and solid areas may need to be obtained. The Thermal Analysis tool can assist in identifying materials in complex elements. Please see this Section below.
Glazed areas are based on transparency of the material assigned in Revit (even if no glass types have been assigned).
