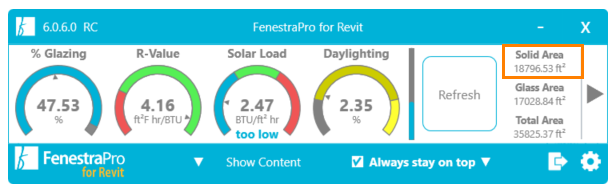

The Façade Area will display the solid wall area for the selected Surface or Façade. If multiple Facades or Surfaces are selected, the total value is displayed.
