3.0 Dashboard

2 minutesread

Concept Tool

FenestraPro Concept Tool can open in its collapsed state with just the summary Dashboard and Toolbars visible or it may open fully expanded.  You may set options for this in the Settings area  and checking Show expanded on opening.  This will be applied the next time that FenestraPro is launched.  The application window may also be expanded anytime by clicking on Show Content to reveal the complete window.  Checking the box beside Always stay on top will allow the application to remain in front of other windows on screen if several are open.

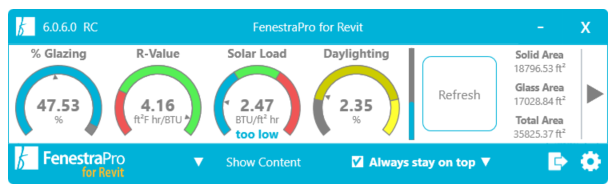

Concept Tool – collapsed state, showing Dashboard only

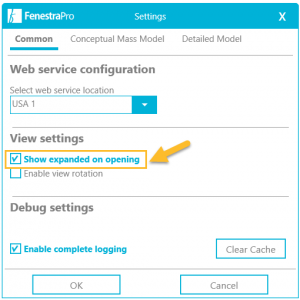

Option in Settings to open the application with the full window

Detailed Tool

The Detailed Application does not have a setting for this but if you wish, you may drag the corner of the main window to reduce the display to the Dashboard only.

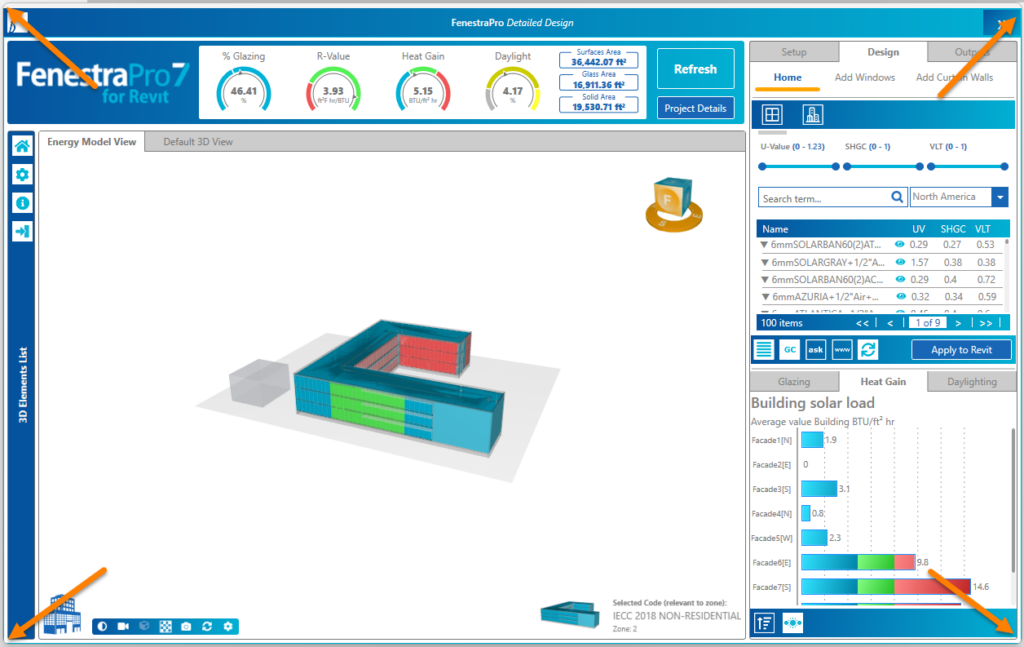

Drag the window using any corner to resize
The window reduced to the Dashboard only after resizing
