In the Concept Tool, the list of Facades and Surfaces in the Facade Navigator may be filtered and sorted by using the Groups feature at the top of the panel. Click on the Groups header to expand the drop-down list. The list may be sorted by various categories such as Façade, Orientation, Storey Height, Percentage Glazing, Heat Gain Group and Daylighting.

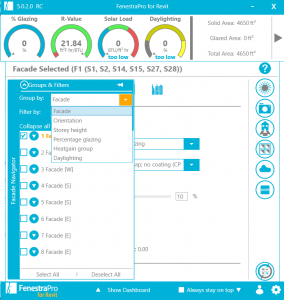

Group by various categories

The list may be further filtered by % Glazing, Area, Orientation, Orientation and Floor.  It is possible to create a custom group of selected surfaces for both Concept and Detailed model types.  Please see Section 7.7 under Façade Manager for Detailed Models for information on how this may be done.

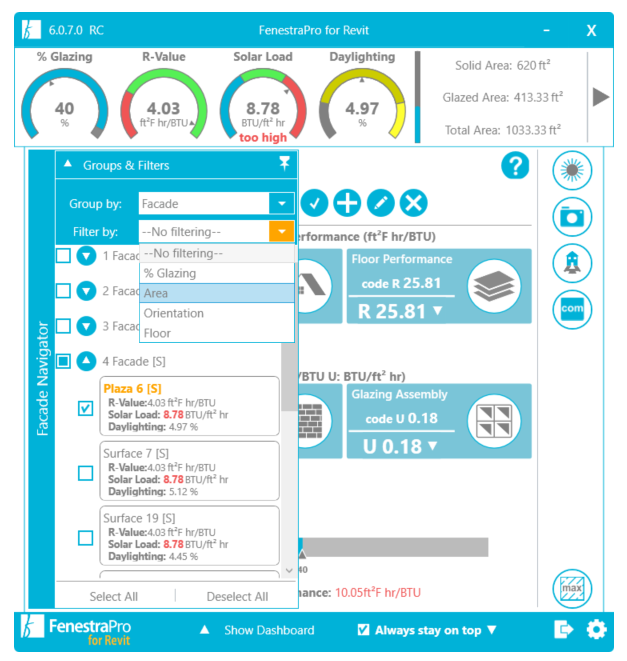

Further Filters to sort the list
Groups categories and filters to sort the list
