3.2.2 Solar Load (BTU/ft2 hr or W/m2)

2 minutesread

The Solar Load value will display the heat from the sun being collected and contained per unit floor area of space.  Where multiple Surfaces/Façades are selected or where none are selected, the average value is displayed for all selected.  If a single Surface is selected, the value for that Surface is displayed.  If several Surfaces are selected which all feed into one space, the Heat Gain displayed is the cumulative value for all contributing Surfaces.  Multiple Surfaces related to different spaces will display an average value for the selections made.

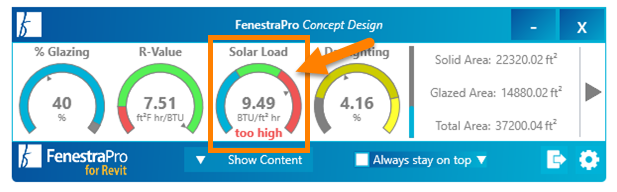

Solar Load is displayed per unit floor area (BTU/ ft2 F hr or W/m2).  FenestraPro uses color coded ranges to indicate values: red when overheating occurs, blue when underheating occurs, and green when optimum values are reached.

Solar Load Ranges used by the application (color coded)
