6.2.1.4 Undock the Facade Navigator

1 minuteread

The Facade may also be undocked and resized independently if there are a large number of Surfaces in the model.  This is achieved by dragging the panel away using the blue header where it says ‘Groups and Filters.  The header will then become ‘Facade Navigator‘.

This will separate the Panel from the main window and it may be placed on the desktop independently.  It may be re-docked by using the Close X button in the top right corner or by dragging the window back to the main window.

Note: The Façade Navigator cannot be undocked if it has been pinned (it must first be unpinned).

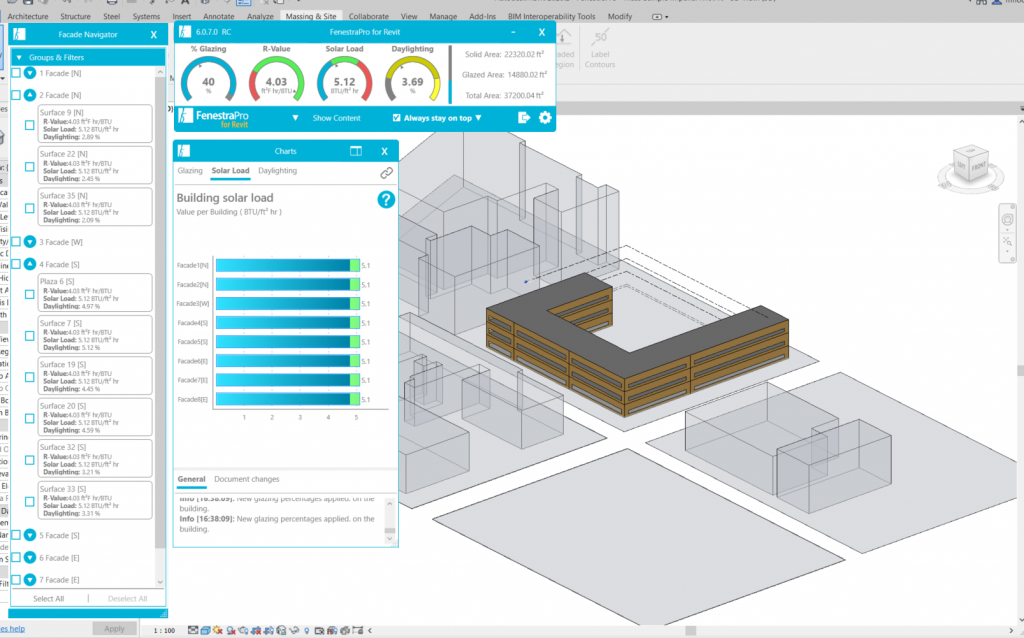

Undock and Redock the Facade Navigator if required
