8.2 HTML Report

3 minutesread

There is an option to create a HTML Report which will open in a browser window and provide more flexibility for creating custom charts.  This is available for both Concept and Detailed models.  Check the HTML radio button to choose this option. An online report will open in your default browser.  This will allow you to view the data and create custom chart data and styles which may be downloaded and saved as PDF, JPG files etc.

Note: You will need to be signed into your online account to view HTML Reports.  These are the same login credentials that you created for your online account and for using the application in Revit.

A message will indicate that the report has been transferred, you may close this message. The dialog window in Revit will remain open, this may also be closed.

Detailed Tool

HTML Report option under the Outputs tab

Concept Tool

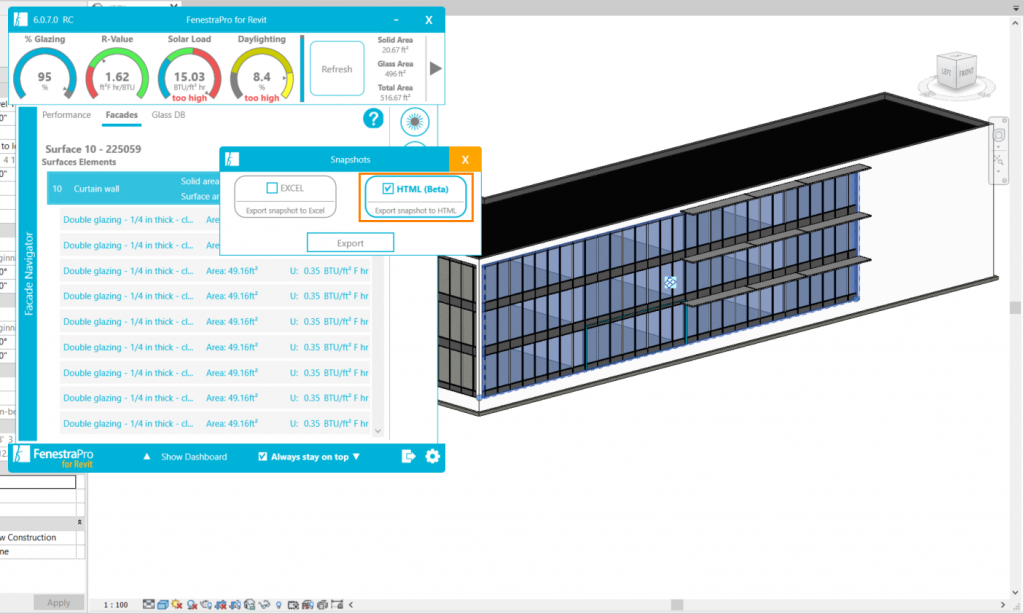

HTML Report option – check this box in the Concept Tool

A message will indicate that the report has been transferred, you may close this message.  The dialog window in Revit will remain open, this may also be closed.

HTML Report will open in a browser window

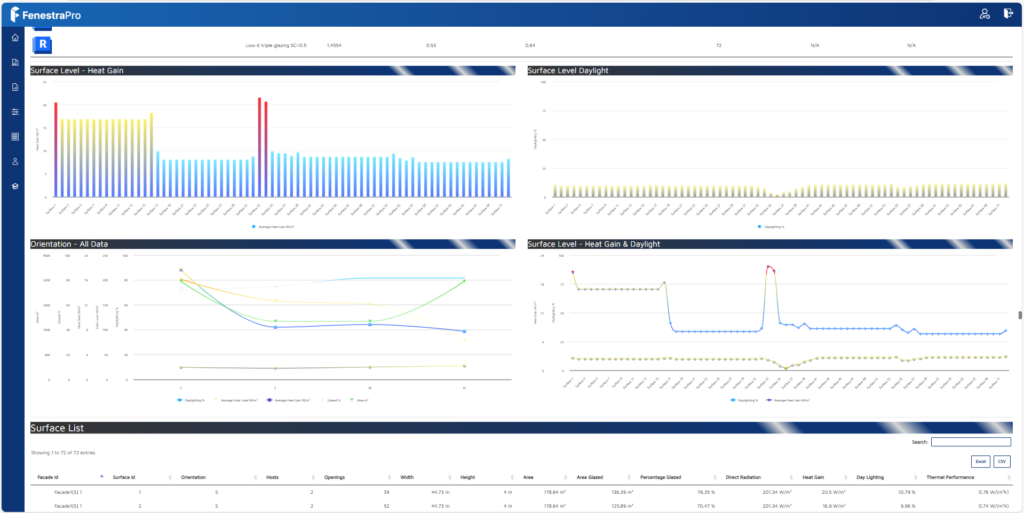

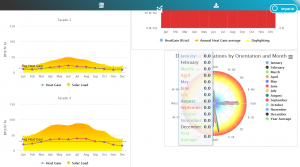

Scrolling down will display charts related to the results

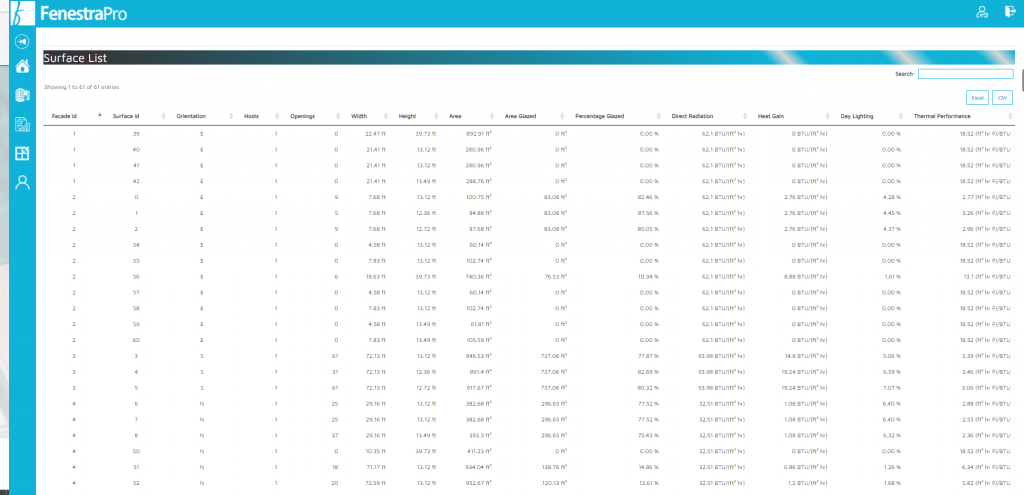

Surface List displays results for each with orientations, openings, areas etc

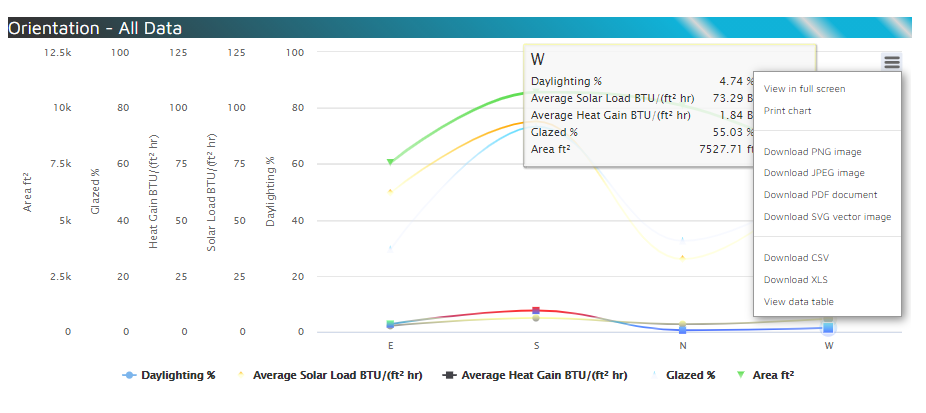

The Report will display Glass Types in the model, Surfaces and results and default charts.  Hovering over areas on the Charts will display detailed information related to that Surface. Charts also have context menus where you may download various formats of the display or view in full screen.

A PDF version of the Report may be downloaded

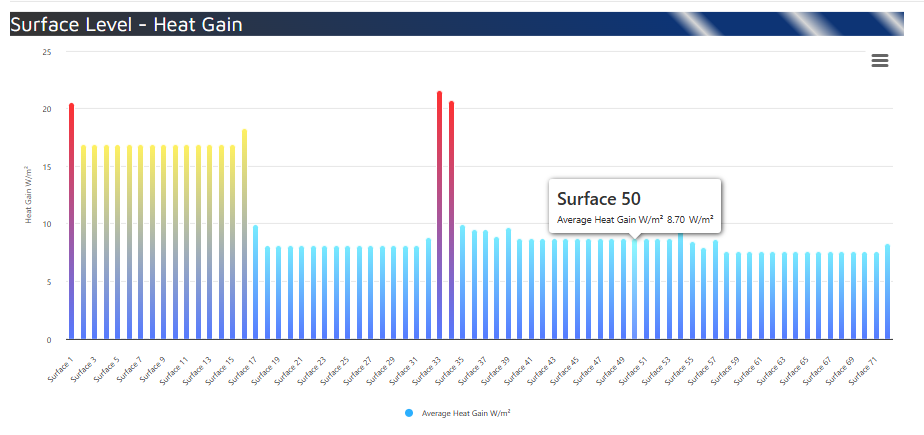

Hover over Chart to view details
Right click on the menu icon to download file options

It is also possible to create custom charts using the data in the report. This is described in the following article.
